Spring Problem in Brother Sewing Machine?

I have a Brother LS-1217. I have been experiencing some difficulty sewing so I started trouble shooting and messing with the bobbin tension and such, when I found 2 springs on the left side of the bobbin winder. The larger one is attached and the smaller one is attached at the top but not at the bottom. Could this be why I'm having trouble. If so where does this little spring attach to at the bottom?

Advertisement

By Kara S.

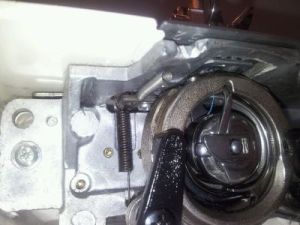

view of springs


Add your voice! Click below to answer. ThriftyFun is powered by your wisdom!



Silver Feedback Medal for All Time! 282 Feedbacks
October 20, 20140 found this helpful

Take your Brother machine to the nearest repair tech - that spring does go somewhere but without seeing it in person it's hard to say for sure where. Any sewing centre with advertised repair facilities will have your machine up and running again for you in short order. No idea of the cost, sorry, but expect it to cost you around $25 (£40 in the UK) for the tech to look and fix.

Advertisement

Splash out a bit more for a complete servicing to be sure nothing else is wrong and the machine is properly cleaned, oiled, and given a good check over.


January 23, 20150 found this helpful

Did you figure out where it goes? I am having the same issue. Thanks.


January 27, 20150 found this helpful

I have the same problem. Any luck?



March 27, 20220 found this helpful

So where did a little spring go to can you show me on your sewing machine because I dont have the extra funds to take it to somebody to repair


March 7, 20153 found this helpful

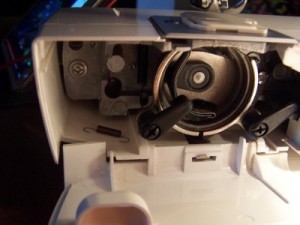

Hello - I had the same problem, just had it fixed - I've attached photos as its hard to explain where the springs go...



May 2, 20181 found this helpful

Hi.. I could not see any other attachment. Do u mind to forward me the photos? Having e same loose spring.


Anonymous
October 10, 20180 found this helpful

Can you forward to me also. The 2nd spring has been hanging lose and today when cleaning the machine, it popped off complety.

Many, many thanks


January 15, 20211 found this helpful

I had this problem too. The picture might not appear clear enough.
pull the hanging end of the spring gently towards the front and hook it back to front where you see an upside down "2".


December 15, 20211 found this helpful

Jenny C, Im having the same problem and I cant understand how to attach the spring. Can you please message me a picture?


December 15, 20210 found this helpful

Jenny C, Im having the same problem and I cant understand how to attach the spring. Can you please message me a picture?


December 22, 20210 found this helpful

Thank You so much,fixed it from this picture


March 24, 20230 found this helpful

Hooray - i have just repaired my machine (in UK) by looking at your photos Thank you!


May 8, 20220 found this helpful

The little spring is off


March 25, 20230 found this helpful

THANK YOU! After a lot of searching I found your photo and was able to fix my machine. :)
