Wooden Quilt Patterned Barn Star

September 9, 2019

Wooden Barn Star Quilt Pattern - red, white, and blue star with two white stars on blue center squaresA short time ago I was trolling Pinterest and found this great barn star wall hanging. I thought to myself this looks easy enough to make (we all like easy). So off to the lumber yard I went and bought an 8' 1x4 board. Not knowing the exact measurements I just guessed. NOTE: you can make this any size you want.

Advertisement

I cut 4 pieces 11" long and 4 pieces 7 1/2" long to make this barn star. One end on each piece is cut at a 45 degree angle. After cutting the boards I sanded all pieces with a belt sander, glued the pieces together and then painted it.

Total Time: 3 hrs

Yield: 1

Supplies:

  • 1 1X4" board 8 feet long
  • sand paper and pocket screws
  • wood glue
  • Optional: Kregg pocket hole jig
  • paint (your pick the colors)
Wooden Barn Star Quilt Pattern - supplies

Wooden Barn Star Quilt Pattern - supplies


Steps:

  1. Cut 4 pieces 11" long. Using a miter saw cut one end on each board at a 45 degree angle (see photo).

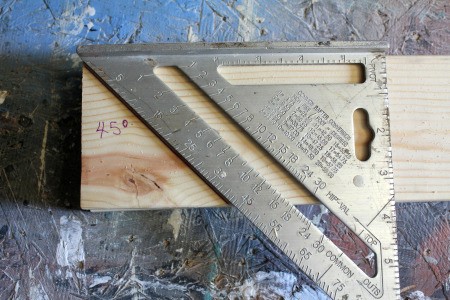

  2. Wooden Barn Star Quilt Pattern - cut 4 pieces 11" long and mark one end for a 45 degree cut

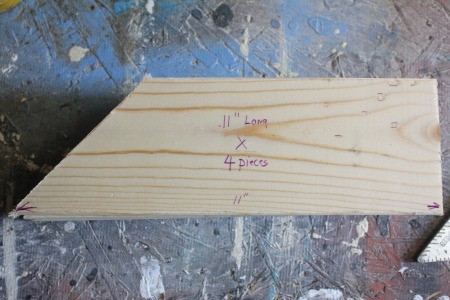

    Wooden Barn Star Quilt Pattern - cut using a miter saw

  3. Cut 4 pieces 7 1/4" long using a miter saw. Cut one end on each board at a 45 degree angle (see photo).

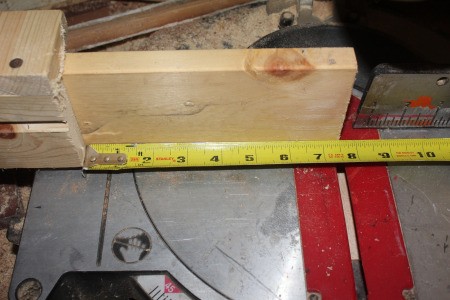

  4. Wooden Barn Star Quilt Pattern

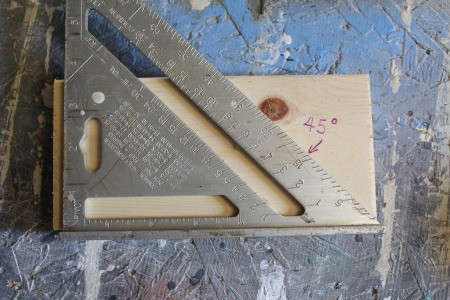

    Wooden Barn Star Quilt Pattern - cut four pieces 7 1/4 inches and mark for a 45 degree cut

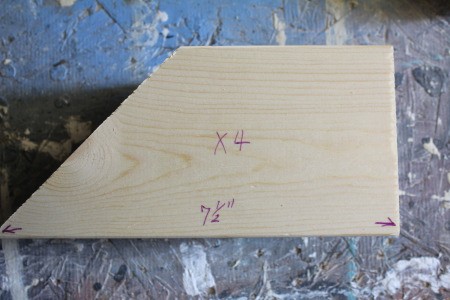

    Wooden Barn Star Quilt Pattern - short piece with cut made

    Advertisement

  5. After cutting the boards sand with a belt sander.

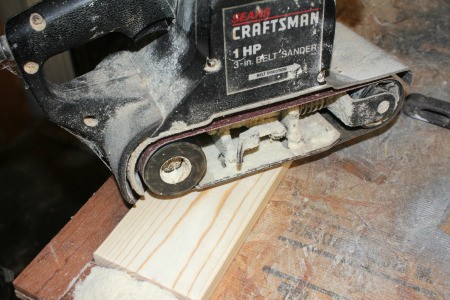

  6. Wooden Barn Star Quilt Pattern - after cutting the boards sand

  7. Apply glue at each mating surface. Optional: for faster assembly I used the Kregg pocket hole jig and pocket hole screws.

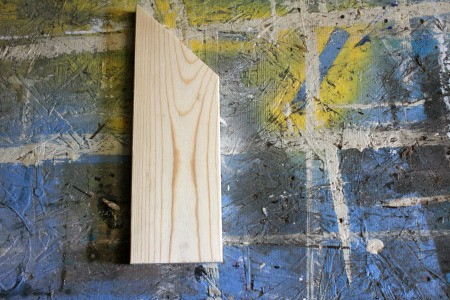

  8. Wooden Barn Star Quilt Pattern - begin laying out and gluing pieces together or use optional drill method

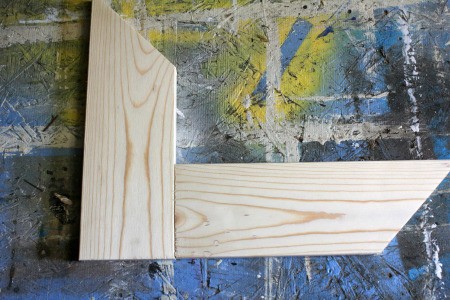

    Wooden Barn Star Quilt Pattern - second piece

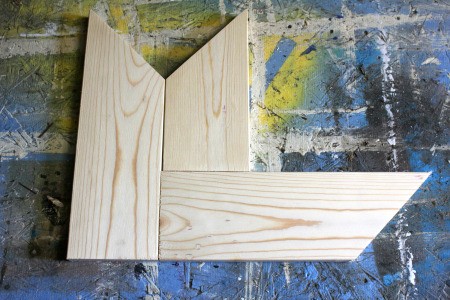

    Wooden Barn Star Quilt Pattern - shorter piece added

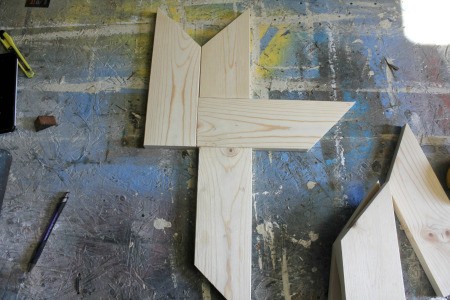

    Wooden Barn Star Quilt Pattern - vertical piece

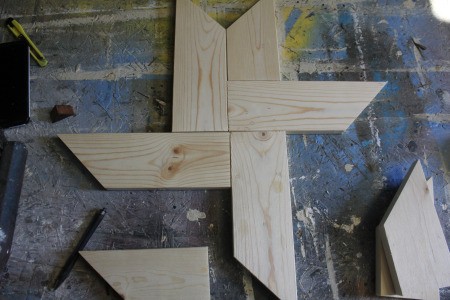

    Wooden Barn Star Quilt Pattern - left direction horizontal

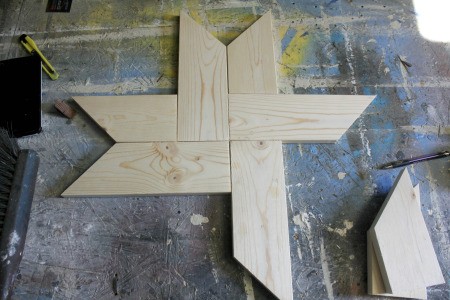

    Wooden Barn Star Quilt Pattern - short piece added to make left star point

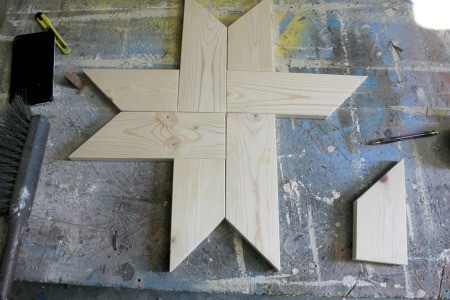

    Wooden Barn Star Quilt Pattern - continue building

    Wooden Barn Star Quilt Pattern - star shaped created

  9. Clamp pieces until glue dries.
  10. Wooden Barn Star Quilt Pattern - if glueing clamp sections together

  11. Paint to your liking.
